Millimess Dial Comparators

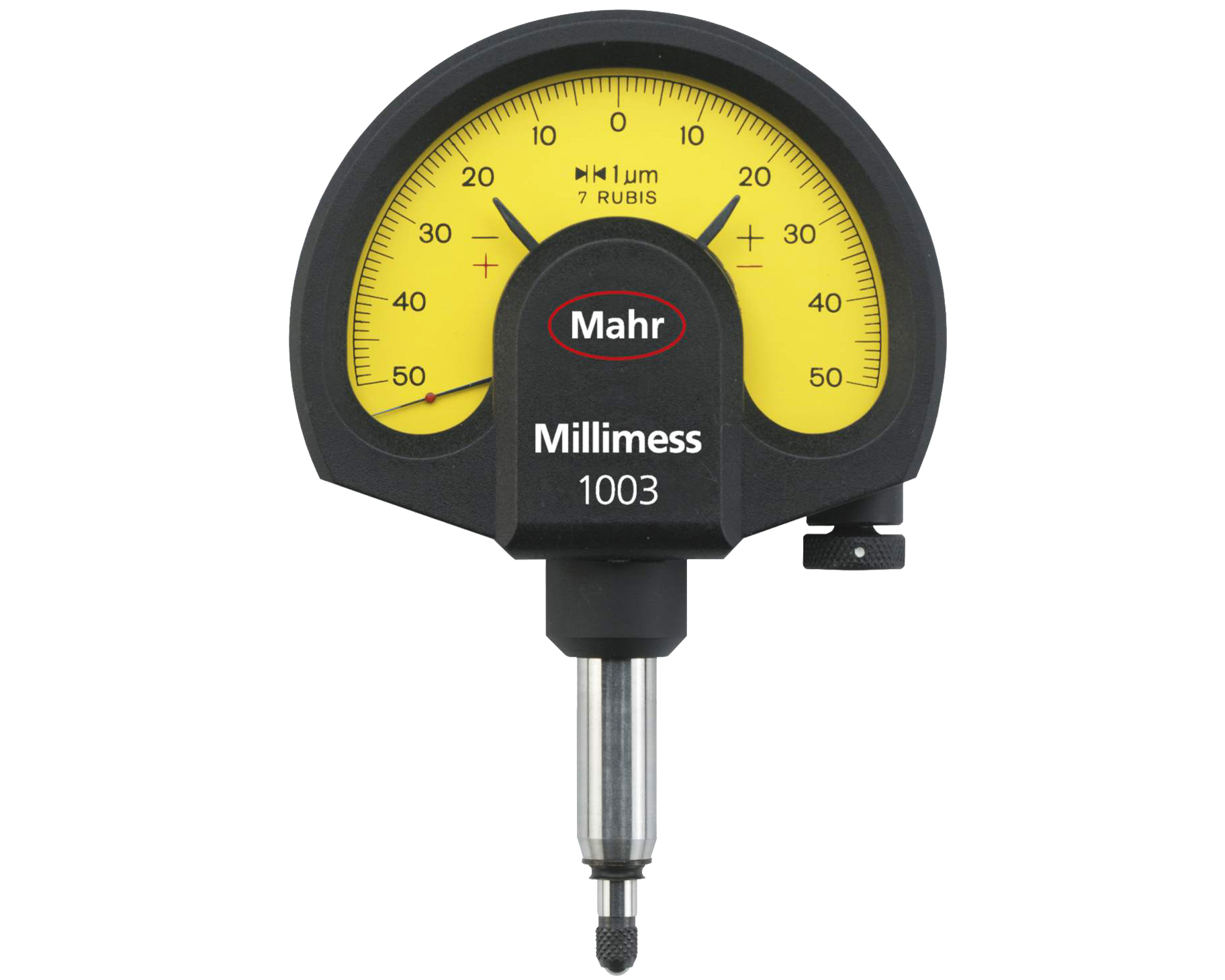

Millimess 1003 Mechanical Dial Compators
| Order no. | Product type | Measuring range µm | Graduation value µm | Type of dial face | Error limit Ge (µm) | Error limit Gges (µm) | Error limit Gt (µm) | Hysteresis fu (µm) | Repeatability fw (µm) | Standard | Measuring force | Scale diameter | Dial color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4334010 |
1003
|
± 50
|
1 µm
|
50-0-50
|
1 µm
|
1.2 µm
|
0.7 µm
|
0.5 µm
|
0.5 µm
|
Factory standard
|
2 N
|
50 mm
|
Yellow
|
| 4334011 |
1003
|
± 50
|
1 µm
|
50-0-50
|
1 µm
|
1.2 µm
|
0.7 µm
|
0.5 µm
|
0.5 µm
|
Factory standard
|
3 N
|
50 mm
|
Yellow
|
| 4334050 |
1003
|
± 50
|
1 µm
|
50-0-50
|
1 µm
|
1.2 µm
|
0.7 µm
|
0.5 µm
|
0.5 µm
|
DIN 879-1
|
0.5 N
|
50 mm
|
Yellow
|
| 4334070 |
1003
|
± 50
|
1 µm
|
50-0-50
|
1 µm
|
1.2 µm
|
0.7 µm
|
0.5 µm
|
0.5 µm
|
DIN 879-1
|
0.4 N
|
50 mm
|
Yellow
|
| 4334071 |
1003
|
± 50
|
1 µm
|
50-0-50
|
1 µm
|
1.2 µm
|
0.7 µm
|
0.5 µm
|
0.5 µm
|
DIN 879-1
|
0.7 N
|
50 mm
|
Yellow
|
| 4334075 |
1003
|
± 50
|
1 µm
|
50-0-50
|
1 µm
|
1.2 µm
|
0.7 µm
|
0.5 µm
|
0.5 µm
|
DIN 879-1
|
0.3 N
|
50 mm
|
Yellow
|
| 4334076 |
1003
|
± 50
|
1 µm
|
50-0-50
|
1 µm
|
1.2 µm
|
0.7 µm
|
0.5 µm
|
0.5 µm
|
DIN 879-1
|
0.6 N
|
50 mm
|
Yellow
|
- Large, high contrast dial face
- Adjustable tolerance markers
- Lockable fine adjustment screw
- Shockproof movement
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
- Resistant to lateral forces (side play) acting on the measuring spindle
- Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
- Box type protective housing
- Constant measuring force
- Measuring spindle can be retracted with either a screw in cable release or with a lifting knob
