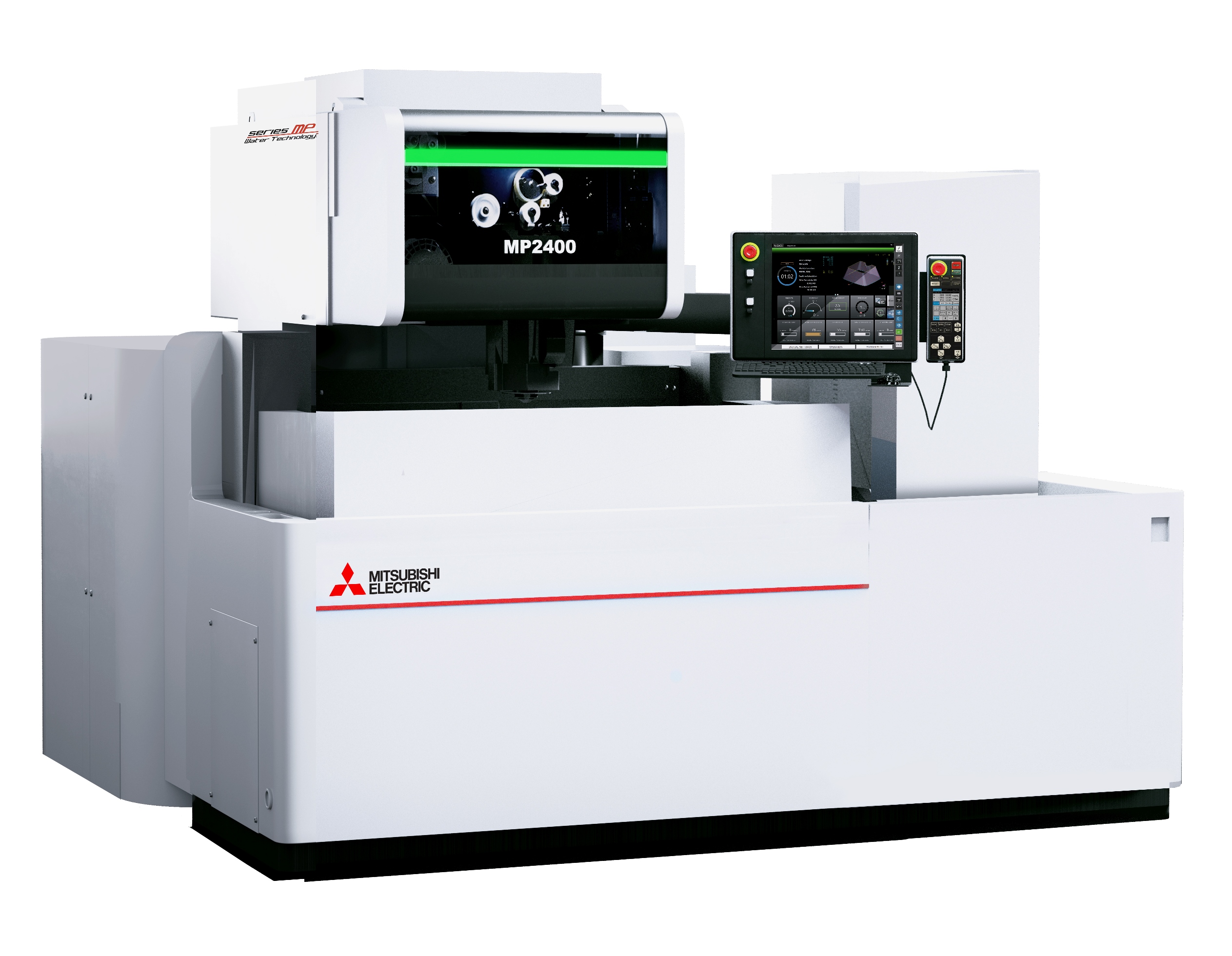

WEDM - MITSUBISHI
MP2400R Connect
Machine Travels 600 x 400 x 310mm
Maximum Workpiece Dimensions 1050 x 820 x 305mm
Max. Submerged Workpiece Weight 1500kg
Table Dimensions 840 x 640mm
U/V Travels (from center) ±75 x ±75mm
Taper Angle @ Thickness 15 deg.@ 260mm
Table Rapid Feed Speed 1300mm/min
The new innovative MV-R series features improvements in machine construction, auto-threading, internal machine communication, power supply technology and operating costs. For easier user interface, the MV2400-R Advance Plus M800 utilizes the new Mitsubishi M800 series control with a 19-inch cell phone like touchscreen. It also showcases Mitsubishi's continuous dedication to high precision through new innovations - including the highly reliable non-contact Cylindrical Drive System on the X, Y, U & V axis drives. The technology available with the MV2400-R M800 represents significant advancements in wire EDM technology.
