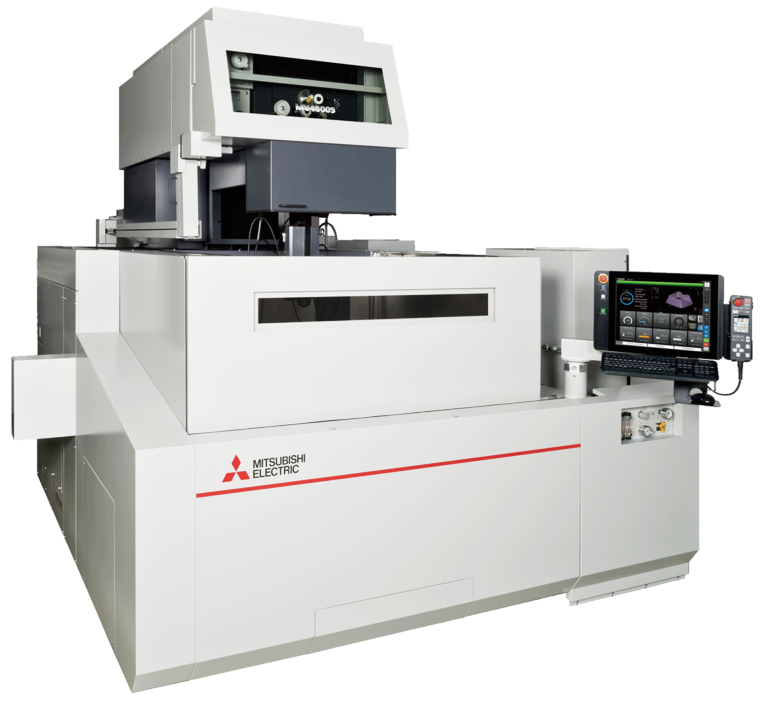

MV4800S Advance

Opening the door to IoT New type control unit “D-CUBES”
By improving machining accuracy and utilizing IoT technology, we will support customer productivity improvement, with innovation technology, manufacturing will be on the next stage

Machining accuracy & Stability
Next-generation drive system and optimum machine structure
- Equipped with a linear shaft motor(LSM)
- Circular accuracy within 1μ is realized using optical drive system(ODS).

Automatic wire threading
Advanced technologies for greatly improved productivity
- New annealing system greatly improves wire threading with a curl ratio of less than 10%.
- Wire break point insertion is greatly improved for thick workpieces.
- Wire threading suitable for workpiece shape. (jet on/off and submerged break point insertion)

Advanced Productivity
- Surface roughness improvements are realized through enhanced power supply performance for high speed machining.
- Surface finish reduced by 50% by machining with only 2 cuts.
- Machining time comparison for Rz 3.5 μm/Ra 0.45 μm with 3 cuts.

Operability
Excellent performance with "Easy operation", "human error reduction" and "connect ability" supporting productivity improvement for customers.
- Information is displayed on a large 19-inch screen.
- Functions to be viewed or used are called by one touch from the HOME screen.
- The number of operations performed on the Navigation menu from setup to machining is reduced by almost 40%. (as compared to the past)
- Setup performance is improved by a thin hand pendant box with LED.

Energy savings, low operating cost
Consideration for the environment and cost reduction
- The operating cost of the machine can be viewed on the cost management screen.
This is useful for budget planning.
