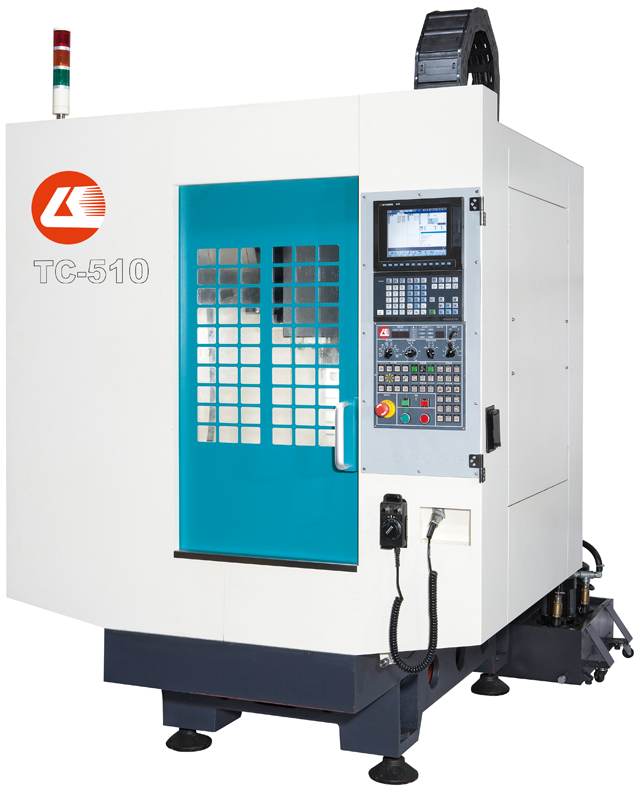

TC-510 Vertical CNC Tapping Center

X-axis Travel                          510mm
Y-axis Travel                         420mm
Z-axis Travel                         350mm
Distance from spindle center to table surface      180-530mm
Table dimension                      650 x 420mm
Max. table load                   250kgs
Rapid traverse                         48/48/48m/min
Cutting federate                     1-10m/min
Spindle speed                         12000rpm
Spindle nose                         BT-30
Spindle motor                         3.7/5.5    kw
Tool changer                         16 (Turret type)
Machine dimension                     2416 x 1686 x 2432mm

Features:

  • Ultra compact High Speed CNC Tapping Center
  •  A Tapping Center known for Best value for price
  • Taiwan's largest export market share for Tapping Center
  • BT 30 - 12 000rpm DDS
  • 48m/min rapids
  • Siemens 828D PPU280 std.
  • Lightening Fast ATC
