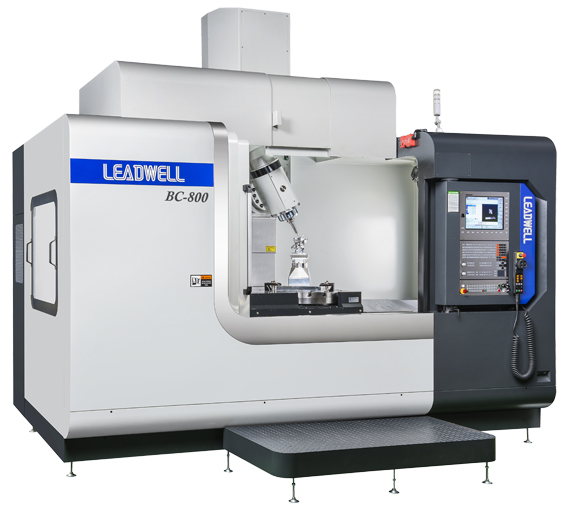

BC-800
• X axis travel: 1520mm
• Y axis travel: 760mm
• Z axis travel(Vertical/Horizontal): 720/800mm
• Table size (LxW): 1700x650mm
• Spindle speeds: 15,000rpm
• Spindle motor: 18.5kw
• Tool storage capacity: 30Pcs
High Rigidity:
• FEA Analysis
• Rigid structure design
• Dual nuts ball screw design in X/Y axis
• Rotary table use DD motor
• Roller type guide way (X/Y/Z axis)
• Embedded rotary table design
High Reliability:
• Roller type motion system
• Ball screw bearing lubrication system design
• Dual chip auger
• Three axis optical scale
• Rotary table compensaion adjustment system
• Dynamic collision monitoring system
• Moveable ATC design
High Efficiency:
• Rapid feed rate 36/36/30 mm
• Spindle speed 15,000 rpm
• 5-axis machining simultaneously
