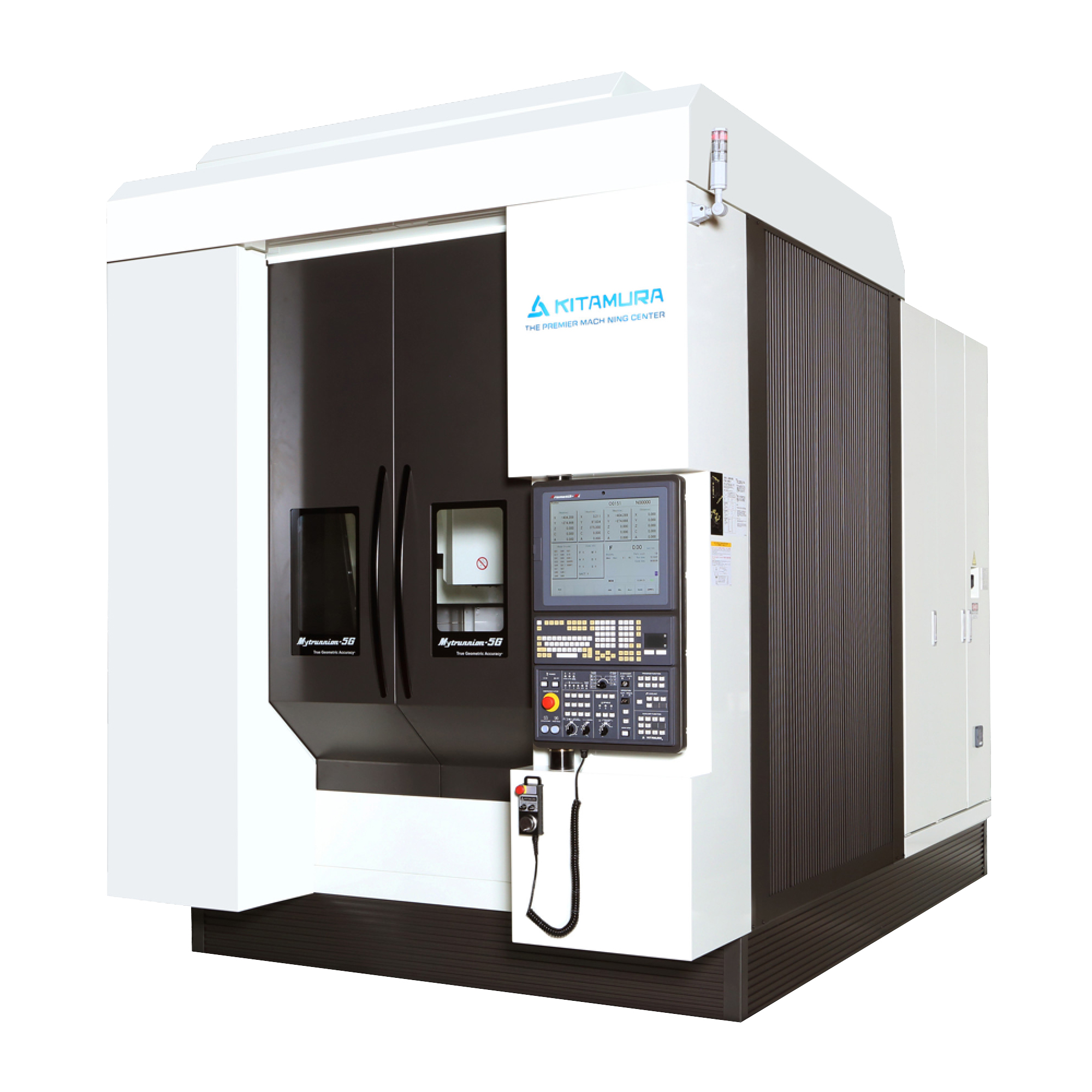

Mytrunnion 5G

5-Axis Machining Centers

Mytrunnion 5G

Table Size: 630mm dia.
Travel (X, Y, Z):                                               815 x 745 x 500mm
Travel (A, C): -30~+120 deg. /0~360 deg.
Spindle Taper: NST No. 40
Spindle Speed: 20~20,000rpm
Tool Storage Capacity: 50 Pcs. (100 Opt.)
Tool Change Time (T-T/C-C): 2.5 Sec. /5.0 Sec.
Rapid Feed (X, Y, Z): 50m/min X & 25m/min Z
Rapid Feed (A, C): 2,000 deg. /min, 6,000 deg. /min
Power Requirement: 45KVA

• Ideal for ultra-high precision simultaneous 5-axis machining
• Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
• Sliding overhead door allows for easy workpiece loading/unloading
• Powerful 4-step geared spindle delivers high torque and high speed for maximum machining flexibility
• Linear scale feedback on all axes, A & B axis rotary scales
• Highest grade meehanite cast iron construction with solid box ways
