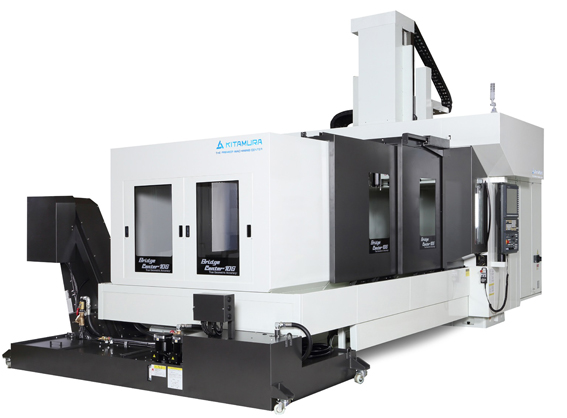

Bridgecenter -10G
Table Size: 1,370 x 3,000mm
Travel (X, Y, Z): 2,540 x 1,615 x 800mm
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity: 40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C): 6.6 Sec. /14 Sec.
Rapid Feed (X, Y, Z): 945ipm (24m/min)
Power Requirement: 50KVA

Features

• Well suited for large part machining requiring increased rigidity and higher levels of precision and accuracy. Perfect for roughing and finishing of large cavities and cores in the die/mold industry.

• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”

• Rigid Meehanite cast iron construction with induction hardened solid box ways

• #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle

• Patented double column bridge type design provides expansive work envelope and superior rigidity

• Linear scale feedback in X, Y, Z axes

• Ultra high speed and high precision contour control for smoother and faster machining. 2,800 block/sec. processing speeds

• 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful machining
