CNC Bridge Type
SDM3220
| Table Size | 3000*1700mm |
| T Slots | 22mm |
| Maximum Loading | 10 000kg |
| X Axis travel | 3200mm |
| Y Axis | 1800mm(2400) |
| Z Axis | 750mm(900, 1200) |
Distance
| Distance between two columns | 2000mm |
| Spindle Speed | 4000(6000, 8000, BT-50) (8000, 10000, 12000, 15000, BT-40) (12000, 15000 BBT-40) (15000, 20000, HSK-63A) |
| Cutting Feedrate X/Y/Z | 1-5000mm/min |
| Rapid Feedrate X / Y / Z | 12m/min(15) / 12(15) / 10(12) |
| No. of ATC tools | 20, 24, 32, 40, 60 |
| Max. Tool (Dia / Length) | Dia ¢110 OR ¢220 No Adjacent Tool / Length 350 |
| Max. tool Weight | 18kg (BT-50) |

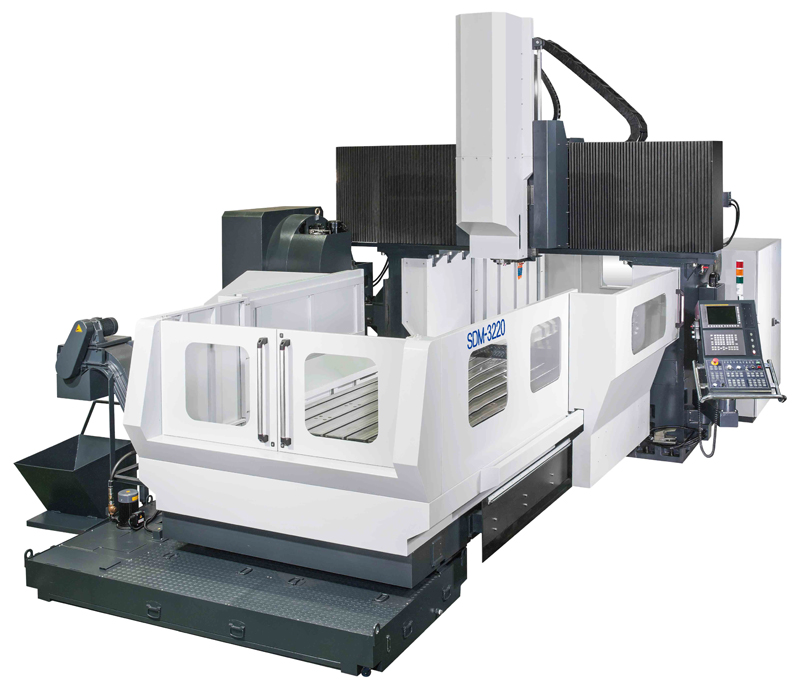

Sanco manufacture a full range of ruggedly constructed SDM series double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.
Spindle & Head Options
- Spindle speed options: 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm -
- dependant on spindle drive & taper configuration
- Spindle drive options: Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
- Spindle taper options: BT50 (std) BT40 or HSK63A (opt)
Optional
- Automatic tool changer options (ATC)
- Milling heads (several styles available)
- Long nose spindle
- 4th Axis rotary table
- Thermal distortion compensation module
- Linear scale feedback
- Coolant through spindle (CTS)
- Work and tool measuring
- Control options: Fanuc/Siemens/Heidenhain
