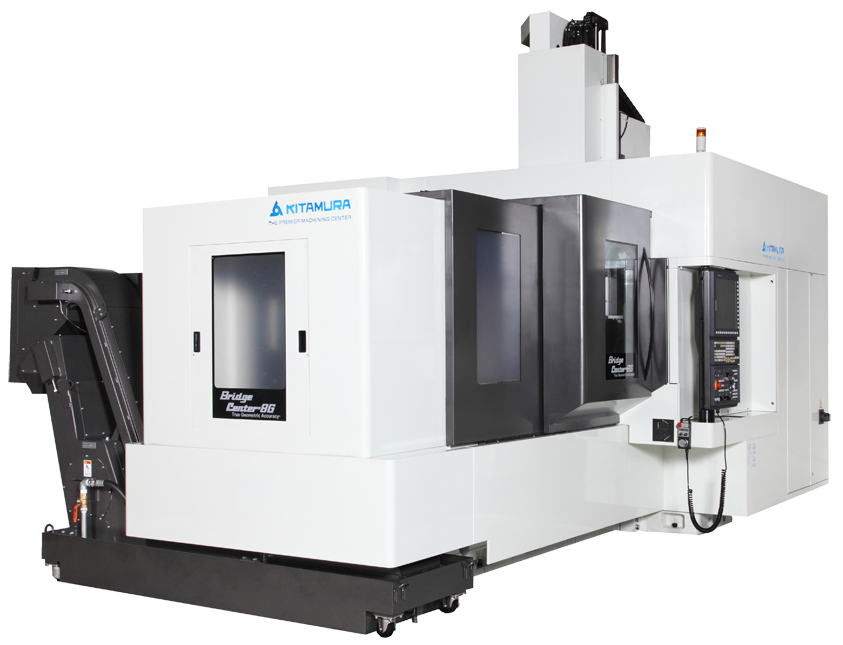

Bridgecenter-8G #50

What We Do

CNC Bridge Type

Bridgecenter-8G #50
Table Size:         900 x 2,500mm
Travel (X, Y, Z): 3,032 x 1,095 x 710mm
Spindle Taper:         NST No.50
Spindle Speed: 35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity: 40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C): 6.6 Sec. /12 Sec.
Rapid Feed (X, Y, Z): 24m/min
Power Requirement: 45KVA


Features

• Ideal for parts requiring heavier cutting loads, and parts that require a higher level of precision and accuracy.  Excellent for Die/Mold applications.

• Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”

• Rigid Meehanite cast iron construction with induction hardened solid box ways

• #50, High Speed, High torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle

• Double column design with patented triangular crossbeam provides expansive work envelope and superior rigidity when compared with C-Frame style machines

• Linear scale feedback in X, Y, Z axes

• Space saving and compact, the Bridgecenter-8G measures only 137.6" x 230.9" (3,494 x 5,866mm) on your floor!

• 7,700 Lb table capacity allows for the capacity to machine larger and heavier work pieces
