Vertical Machining Centres

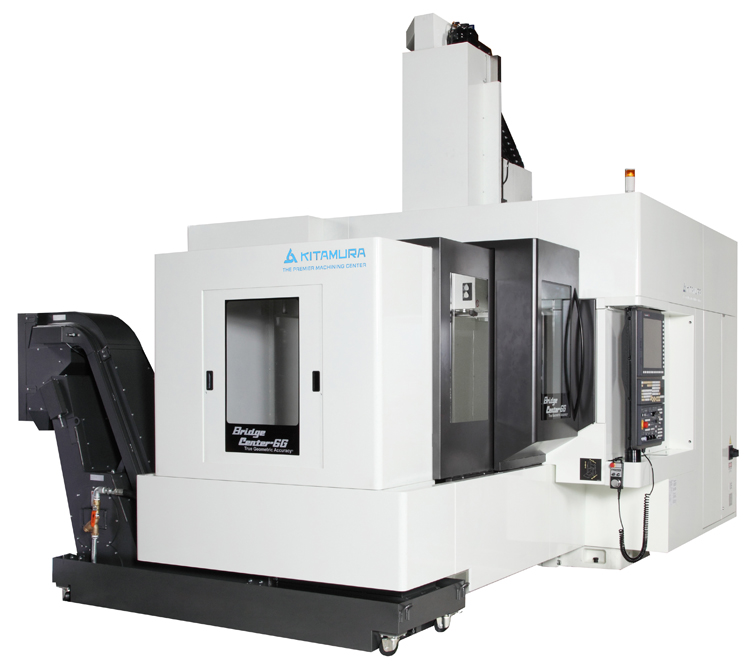

Bridgecenter-6G#50
Table Size: 900 x 1,800mm
Travel (X, Y, Z): 1,530 x 1,095 x 710mm
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity: 40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C): 6.6 Sec. /12 Sec.
Rapid Feed (X, Y, Z): 24m/min
Power Requirement: 45KVA
• Ideal for parts requiring heavier cutting loads and parts that require a higher level of precision and accuracy. Excellent for Die/Mold applications.
• Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with induction hardened solid box ways
• #50, High Torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle
• Double column design provides expansive work envelope and superior rigidity
• Linear scale feedback in X, Y, Z axes
• Space saving footprint takes up only 166 total square feet
• 6,600Lb table capacity
