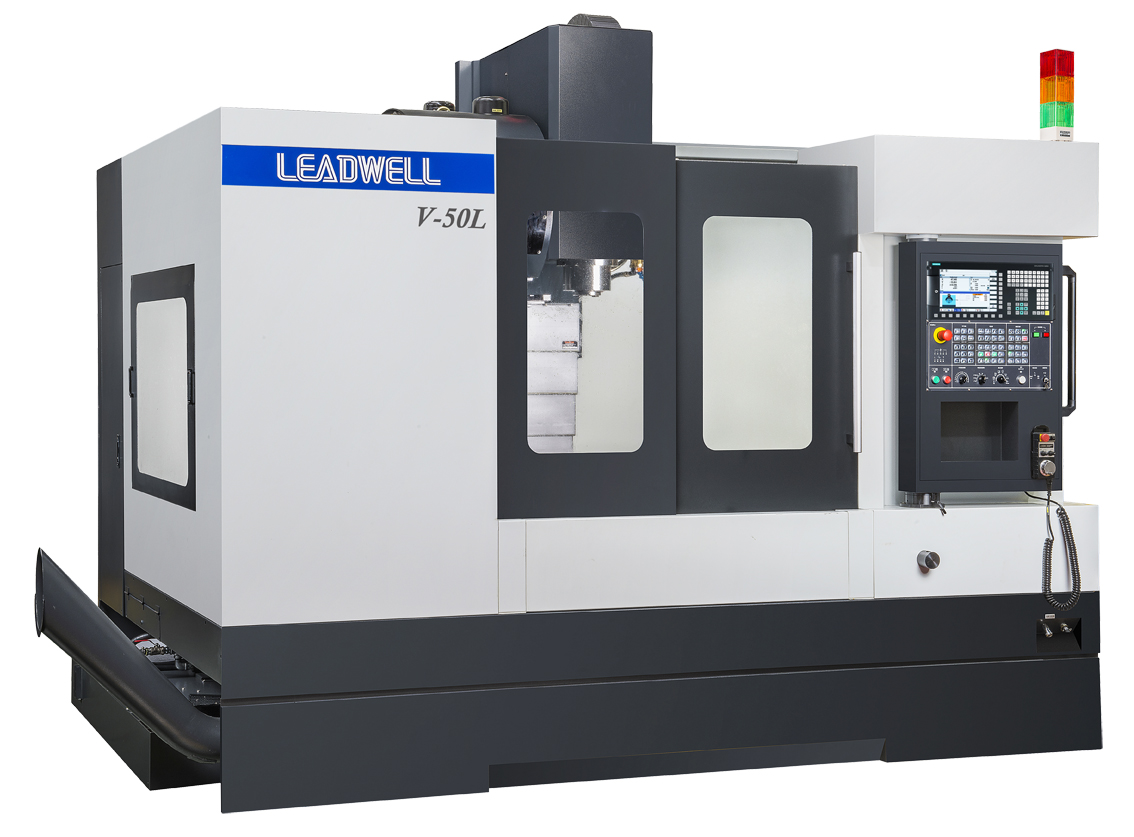

V-50L

Vertical Machining Centres

V-50L

Type Linear way
X-Axis Travel 1270mm
Y-Axis Travel 635mm
Z-Axis Travel 610mm
Table size 1420x610mm
Spindle nose No.40
Spindle taper 7/24
Spindle bearing inner diameter 70mm
Spindle speeds 8000/DDS 10000, 12000, 15000rpm
Tool change time 1.8/4sec
Rapid traverse X/Y/Z 36m/min
Max cutting feed rate 10m/min
  • Flagship Linear Way Machining Center from Leadwell
  • Siemens 828D or Fanuc control
  • 12000rpm Precision Royal Ceramic Bearing Spindle
  • 8000rpm Steel Bearing Spindle (Optional) or 10000rpm Ceramic Bearing Spindle (Optional)
  • 24 position Servo Arm Type Tool Changer
  • 3C class ball screw/roller bearing linear guide way
  • Rigidity of the table increased on previous series by 50%
  • Six blocks for linear guide way/X axis
  • Coolant and chip separation system
  • Explosion-proof screen windlow
  • 36 m/min Rapid Traverse
  • LED Lighting
  • 4th axis preparation
  • Coolant Through Spindle 20 BAR standard
  • Base Flushing
  • Coolant Gun
  • 17/22kw Spindle Motor
