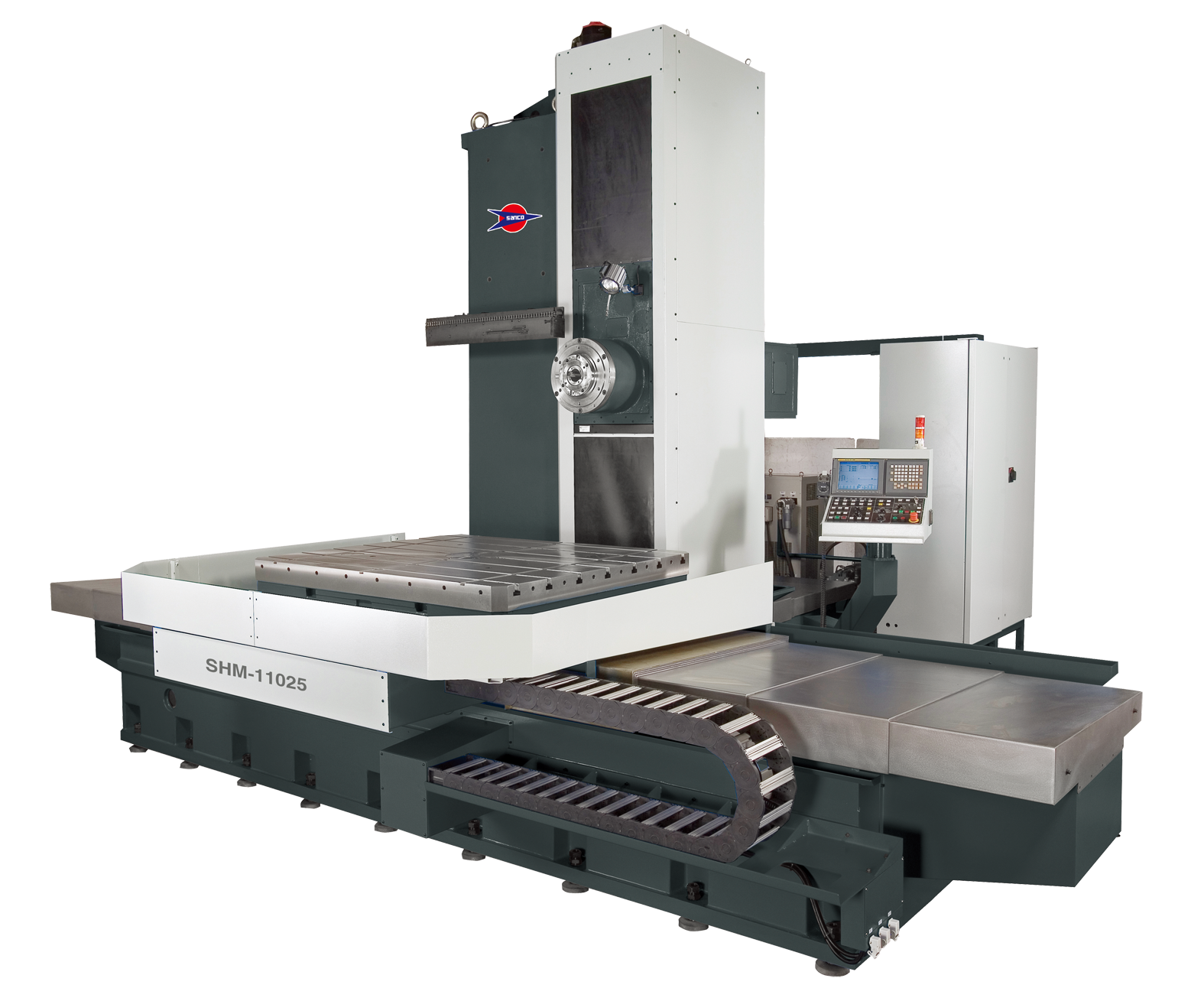

Horizontal Boring Mills
SHM-11020RF
| Overall Size | 1000*1200mm |
| T Slots | 22*9mm |
| Height from Ground | 1240mm |
| Maximum Loading | 4000kg |
| B Axis Mini. Increment ° | 0.001° Automatic 4 positions (90°) |
| X Axis Travel | 2000mm |
| Y Axis Travel | 1600mm |
| Z Axis Travel | 1200mm(1400) |
| W Axis Travel | 400mm |
| Diameter | Ø110mm |
| Speed | 219268rpm |
| Rapid Feedrate X/Y/Z | 10000mm/min |
| Rapid Feedrate W | 5000mm/min |
| Minimum Setting | 0.001mm/min |
| Cutting Feedrate | 5000mm/min |
| No.of ATC | 40(60) |
| Tool Change (Tool to Tool) | 15sec |
| Diameter of Max. Tool | Ø125/Ø250mm |
| Max. Tool Length | 400mm |
| Max. Tool Weight | 25kg |
The extendable quill on the SHM series allows cutting at the centre of the table. The heavy duty direct drive rotary table offers exceptional stability, that can handle loads of up to 7,000kg and can index to 0.001 degree increments. It has a heavy duty locking mechanism that automatically engages at 90 degree increments.
Standard
• Extendable Spindle (Quill or W-axis)
• German precision spindle (110mm diameter)
Features
• Movable column design(except SHM-11020RF)
• Fixed column design(SHM-11020RF)
• Milling style (no rotary table, large milling table) - SHM-11020/11030/11040
• 90 degree precision rotary table locking pin(SHM-11025R / 11030R / 11040R)
