WRFT 130/150/160 Table Type
With Siemens, Fanuc, Heidenhein control

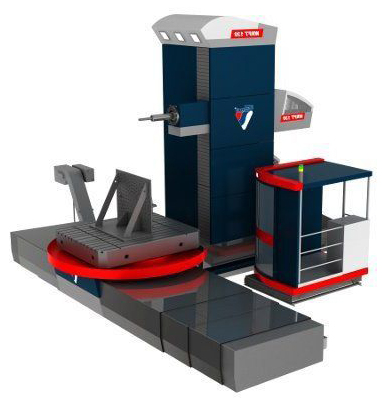

Horizontal Boring Machine WRFT 130/150/160 CNC represents the newest technology and concept of large table type horizontal borers that are currently on the market. Powerful headstock consists of a movable slide ram (V-axis) and a moveable live spindle (W-axis).
Because of this modern design, Fermat WRFT 130/150/160 CNC is a universal boring and milling machine that allows efficient processing of large and heavy workpieces while utilizing high precision and quality of operation.
Machine Axes
WRFT 150 offers 6 axes travel (X, Y, Z, V, W and B). Given additional optional accessories, it is possible to increase the number of controlled axes. During metal cutting, the column of the machine adopts Z-axis movement and the workpieces are clamped on a rotary table that travels in X-axis.
Machine Design
Modular design lets our customers configure the machine to their requirements
X-axis travel from 2400 to 9500mm
Y-axis travel from 2000mm to 6000mm
CNC rotary table - T25/T40/T50, with table sizes from 2050 x 2050mm to 3000 x 3000mm, can hold heavy workpieces of up to 25000kg/40000kg/50000kg.
All components of the machine are from renowned manufacturers.
