Horizontal Boring Mills

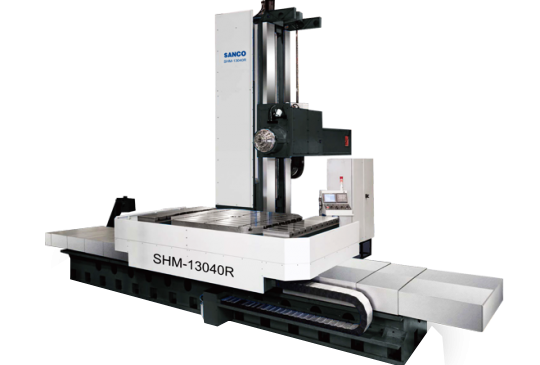

SHM-13040R
| Overall Size | 2000*1800mm |
| T Slots mm | 28*9mm |
| Maximum Loading | 15000kg(20000) |
| B Axis Mini. Increment ° | 0.001° Automatic 4 positions (90°) |
| X Axis Travel | 3000mm |
| Y Axis Travel | 2500mm(3000) |
| Z Axis Travel | 1700mm |
| W Axis Travel (Spindle Axis) | 700mm(900) |
| W Axis Diameter | Ø130mm |
| X / Y / Z Rapid Feed rate | 10mm/min |
| X / Y / Z Minimum Setting | 0.001mm/min |
| X / Y / Z Cutting Feed rate | 5mm/min |
| W Axis Rapid Feedrate mm/min | 2mm/min |
| No. of ATC | 40(60/90/120) |
| Tool Change Time | 15sec |
| Max. Tool Length | 400mm |
| Max. Tool Weight | 25kg |
The extendable quill on the SHM series allows cutting at the centre of the table. The heavy duty direct drive rotary table offers exceptional stability, that can handle loads of up to 7,000kg and can index to 0.001 degree increments. It has a heavy duty locking mechanism that automatically engages at 90 degree increments.
Standard
• Extendable Spindle (Quill or W-axis)
• German precision spindle (110mm diameter)
Features
• Movable column design(except SHM-11020RF)
• Fixed column design(SHM-11020RF)
• Milling style (no rotary table, large milling table) - SHM-11020/11030/11040
• 90 degree precision rotary table locking pin(SHM-11025R / 11030R / 11040R)
