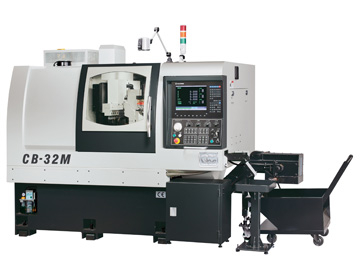

Swiss Type Turning Center
CB32M/CB36M
| Max. manu. dia. | Ø32 Ø36 |
| Bar capacity | Ø32 Ø36 |
| X axis travel | 185mm |
| Y axis travel | 490mm |
| Z axis travel | 165mm |
| X,Y,Z axis rapid travel speed | 30m/min |
| Spindle max. | 6000rpm |
| Spindle motor | 5.0kw, 7.0kw opt. |
| Spindle bar capacity | Ø36 |
| Max. manu. dia. | Ø32 |
| Sub spindle max. | 6000rpm |
| Sub spindle motor | 3.5kw |
| Sub spindle bore | Ø28 |
| Sub spindle bar capacity | Ø32 |
| No. of turning tool | 4 |
| Radial live tooling max. speed | 6000rpm |
| Axial live tooling max. speed | 6000rpm |
Complete complicated parts machining in one operation:
The twin spindle features a complete driven tooling system and the Y axis main spindle delivers high efficiency and outstanding production capability. The back machining capability can save time and reduce labor costs, creating a huge productive benefit when machining complex workpieces.
