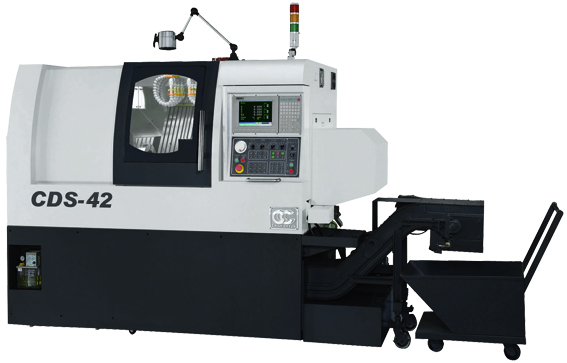

Swiss Type Turning Center
CDS 42
| Max. manu. dia. | Ø42 |
| Spindle max. rpm | 6000 rpm |
| X1-axis travel(vertical) | 330 |
| Z2-axis travel(cross) | 240 |
| Max. bar feeding dia. | Ø42 |
| Collet of spindle | TRB-42 |
| X rapid travel speed | 30 m/min |
| Z rapid travel speed | 30 m/min |
| Sub Spindle Max. manu. dia. | Ø42 |
| Sub spindle max. rpm | 6000 rpm |
| Sub spindle servo motor | 5.5/7.5kw |
| Coolant pump | 3/4 HP |
| Machine size(LxWxH) | 2620 x 1270 x1700 |
| Machine N.W. | 3300 kgs |
| Coolant tank capacity | 210 L |
Feature
- Built for High Accuracy and High Production Operation
- The CDS machine features a slant bed with an independent gang tool table for main and sub spindle. This saves tool changing time and shortens the cycle time.
