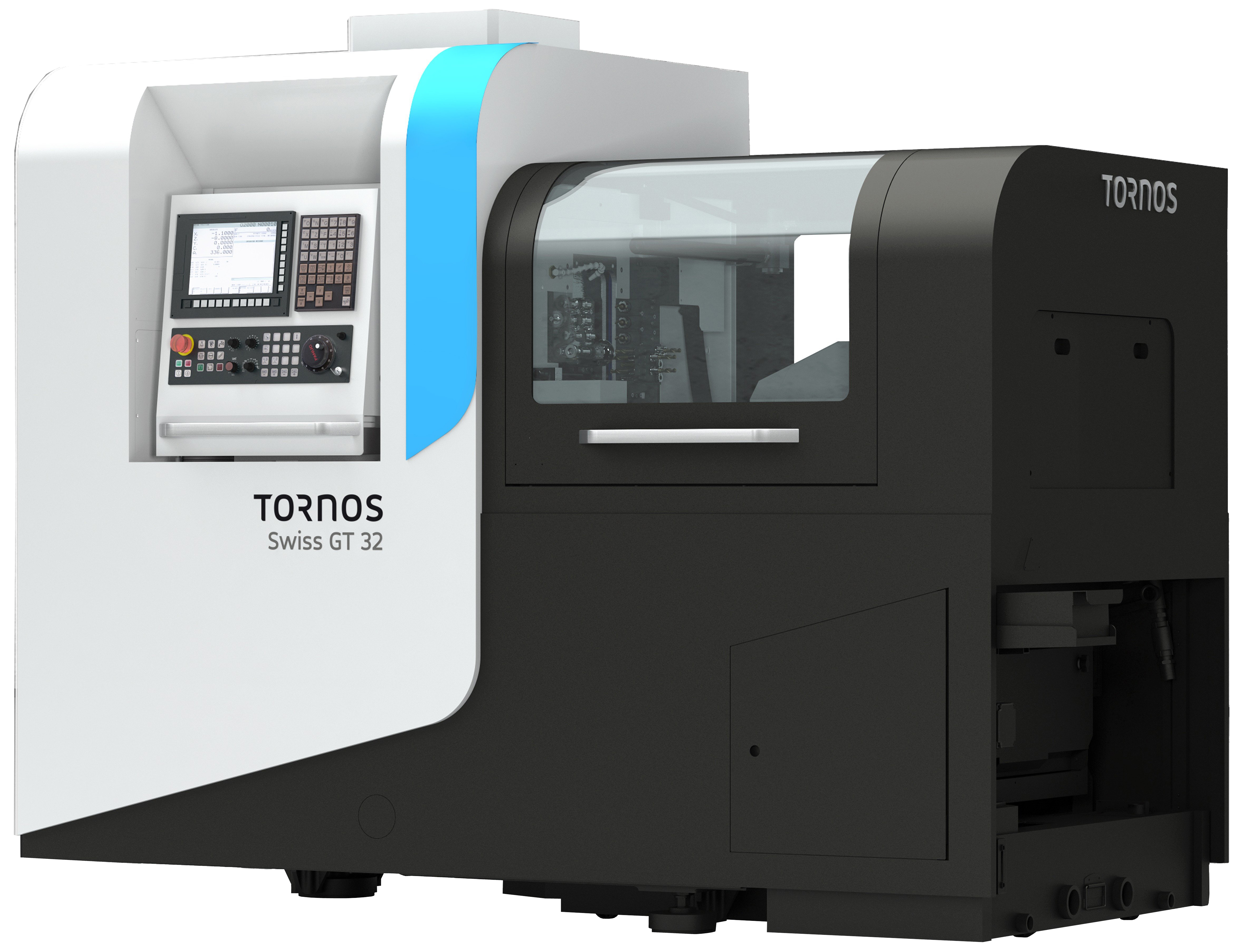

Swiss Type Turning Center
Swiss GT 32
| Maximum diameter | 32 |
| Number of linear axes | 6 |
| Number of C axes | 2 |
| Number of independant tool systems | 2 |
| Total number of tool positions | 40 |
| Position for rotating tools | 14 |
- Ergonomic and modular
- Operation with or without guide bush
- B axis (option)
- Modular tooling system on rear platten
- Attractive price
- Simple to set/adjust
- Quality and precision
The Swiss GT 26 and the Swiss GT 32 may be fitted with up to 40 tools, including 14 rotating tools, while the Swiss GT 13 can take up to 30 tools, including 12 rotating tools. The Y axis offers greatly increased machining capability in secondary operation and allows some complex workpieces to be produced without reworking.
In addition the B axis (option) appreciably extends the Swiss GT 26’s and the Swiss GT 32's capabilities, allowing them to tackle almost any part. The Swiss GT 26B and the Swiss GT 32B are the only Swiss-type lathes equipped with a B axis featuring a modular position that can incorporate either a fourth rotating drilling station or a true thread-whirling head.
