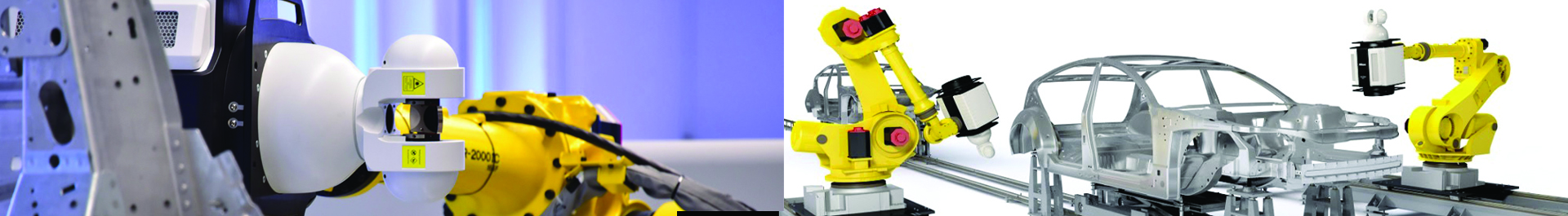

Laser Radar ( Large Volume Inspection)

MV330

Features

  • True long range, non-contact, targetless measurement
  • Completely automatable
  • Highly efficient measurement
  • Lower resource costs
  • High accuracy measurements on most any material
  • Focused & aimed system, measures at precise locations
  • High accuracy measurements on most any material
  • Portable system enables measurements on the shop floor
  • Minimal setup time
  • Flexibility beyond direct line of sight with optional mirror kit
  • Compatible with common metrology software
  • Open SDK for assembly guidance, automated inspection
    station, and machine tool integration

Specifications

Specifications

Measurement Subsystem Performance
Distance Measurement Performance
Sample Rate  4000pts/sec
Resolution  0.01μm
Uncertainty (U=2)  10μm+2.5μm/m

Dimensions and weights
MV330 Instrument
Footprint mm (in)  454 (18) x 381 (15)
Weight  40 (88)  kg (lbs)
Stand Assembly
Footprint  Ø 933.5 (36.75) mm (in)
Weight   29 (65) kg (lbs)
PowerRack
Footprint  571 (22.5) x 787 (31) mm (in)
Weight  45 (100) kg (lbs)




Video

Video

MV350

Features

  • True long range, non-contact, targetless measurement
  • Completely automatable
  • Highly efficient measurement
  • Lower resource costs
  • High accuracy measurements on most any material
  • Focused & aimed system, measures at precise locations
  • High accuracy measurements on most any material
  • Portable system enables measurements on the shop floor
  • Minimal setup time
  • Flexibility beyond direct line of sight with optional mirror kit
  • Compatible with common metrology software
  • Open SDK for assembly guidance, automated inspection
    station, and machine tool integration





Specifications

Specifications

Measurement Subsystem Performance
Distance Measurement Performance
Sample Rate  4000pts/sec
Resolution  0.01μm
Uncertainty  10μm+2.5μm/m(U=2)

Dimensions and weights
MV350 Instrument
Footprint   454 (18) x 381 (15) mm (in)
Weight   40 (88) kg (lbs)
Stand Assembly
Footprint   Ø 933.5 (36.75) mm (in)
Weight  29 (65) kg (lbs)
PowerRack
Footprint   571 (22.5) x 787 (31) mm (in)
Weight   45 (100) kg (lbs)



Video

Video
