SP25M Scanning Probe System
|
Characteristic |
Requirements |
|---|---|
|
Probe attributes |
Scanning with 3-axis measurement (X, Y, Z) Touch-trigger probing using TP20 modules |
|
Measurement range |
±0.5 mm deflection in all directions in all orientations |
|
Overtravel range |
|
|
X, Y |
±2 mm |
|
+Z |
1.7 mm |
|
-Z |
1.2 mm |
|
Resolution |
Capable of <0.1 μm |
|
Spring rate |
Nominally 0.6 N/mm - when using a module's shortest specified stylus Nominally 0.2 N/mm - when using a module's longest specified stylus |
|
Probe dimensions |
Ø25 mm × length dependant on module used |
|
Weight |
|
|
SP25M body |
65 g (2.29 oz) |
|
SM25-1 scanning module |
35 g (1.23 oz) (including SH25-1 but excluding stylus) |
|
SM25-2 scanning module |
40 g (1.41 oz) (including SH25-2 but excluding stylus) |
|
SM25-3 scanning module |
49 g (1.73 oz) (including SH25-3 but excluding stylus) |
|
SM25-4 scanning module |
71 g (2.50 oz) (including SH25-4 but excluding stylus) |
|
SM25-5 scanning module |
45 g (1.59 oz) (including SH25-5 but excluding stylus) |
|
TM25-20 adaptor module |
40 g (1.41 oz) (including TP20 STD module, but excluding stylus) |
|
Effective stylus length range (Always observe the specified stylus range for the scanning module being used. Use Renishaw's M3 range of styli.) |
|
|
SM25-1 + SH25-1 |
EWL 20 mm - 50 mm (0.79 in - 1.97 in) using 20 mm - 50 mm stylus range |
|
SM25-2 + SH25-2 / SH25-2A |
EWL 50 mm - 105 mm (1.97 in - 4.14 in) using 20 mm - 75 mm stylus |
|
SM25-3 + SH25-3 / SH25-3A |
EWL 120 mm - 200 mm (4.73 in - 7.88 in) using 20 mm - 100 mm stylus |
|
SM25-4 + SH25-4 / SH25-4A |
EWL 220 mm - 400 mm (8.67 in - 15.75 in) using 20 mm - 200 mm stylus |
|
SM25-5 + SH25-5 |
EWL 20 mm - 100 mm (0.79 in - 3.94 in) using 20 mm - 100 mm stylus |
|
Mounting |
Multiwired autojoint - compatible with PH10M PLUS / PH10MQ PLUS and PH6M probe heads, extension bars and ACR1 / ACR3 sensor changers |
|
Crash protection |
|
|
±X, ±Y, -Z |
Via break out of module or stylus holder |
|
+Z |
Via integral bump-stop design |
|
Signal outputs |
Non-linear and non-orthogonal analogue outputs - rate gain and resolution are not fixed |
|
Characteristic |
Requirements |
|---|---|
|
Signal outputs |
Non-linear and non-orthogonal analogue outputs - rate gain and resolution are not fixed |
|
Power supply |
+12 V (±5%), -12 V (+10% / +8%), +5% (+10% / -13%) dc at probe |
|
Probe calibration |
Requires that non-linear, third order polynomial calibration method is used |
|
Change rack options |
|
|
FCR25 |
Three port unit which mounts on MRS |
|
FCR25-L3 |
Three port standalone rack version |
|
FCR25-L6 |
Six port standalone rack version |
|
FCR25 TC |
Three port unit which mounts on MRS and warms scanning module |
|
FCR25 TC-L3 |
Three port standalone rack version |
|
Interface options |
|
|
UCC S3 |
|
|
UCC2-2 systems |
|
|
OEM controller systems |
AC3 interface card |
|
Interface for TP20 also required if applicable |

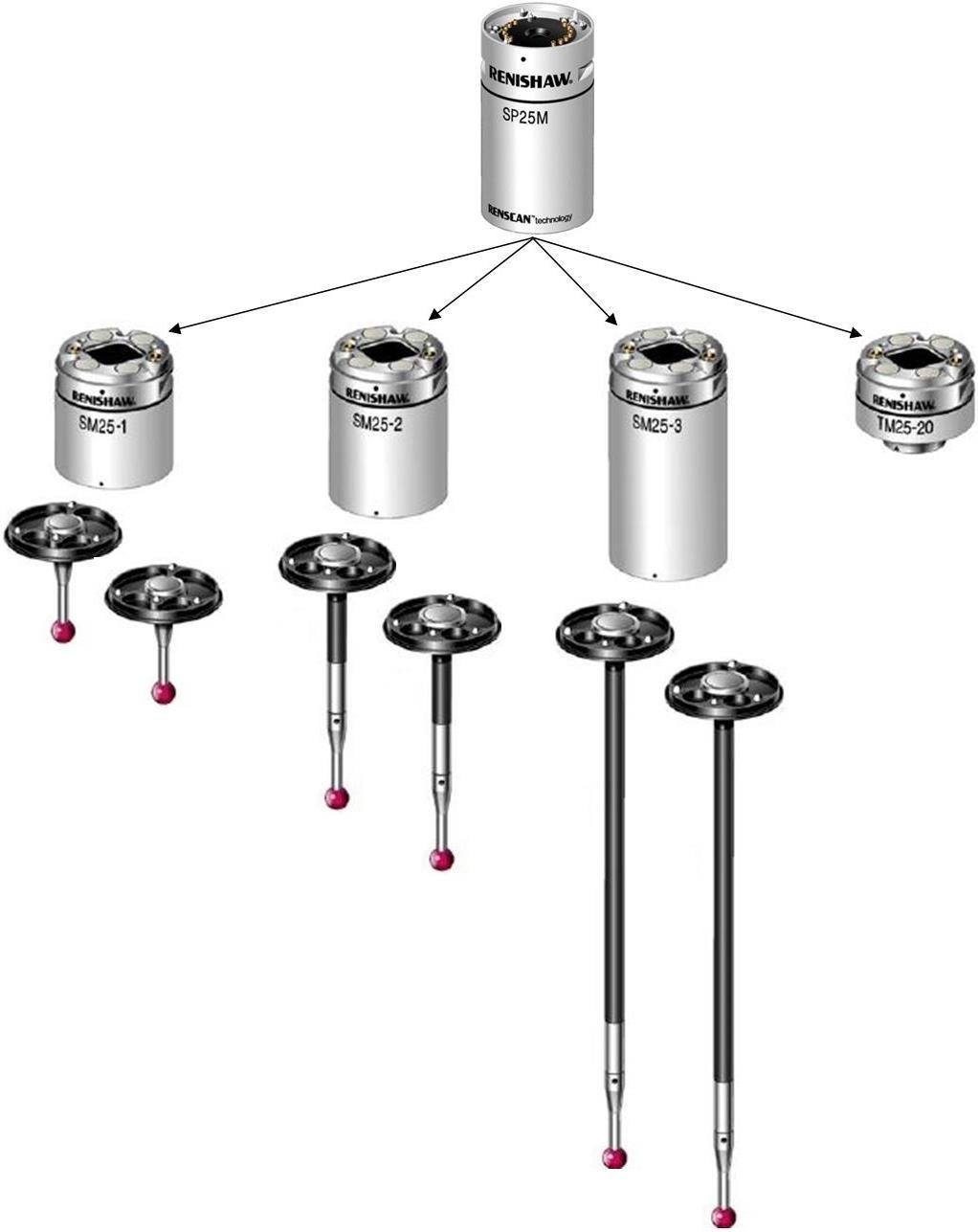

At only 25mm in diameter, the SP25M is the world’s most compact scanning system and comprises two sensors in a single housing. Users can switch between a choice of five scanning modules (which can carry M3 styli with lengths from 20 mm to 400 mm) and an adaptor module that is compatible with Renishaw's TP20 range of probe modules. This capability enables scanning and touch-trigger probing in a single probe system. The SP25M's compact size and autojoint mounting makes it compatible with the PH10M PLUS / PH10MQ PLUS and PH6M probe heads. It can also be mounted on a multiwired extension bar. Together, these combinations permit excellent reach and access to part features.
