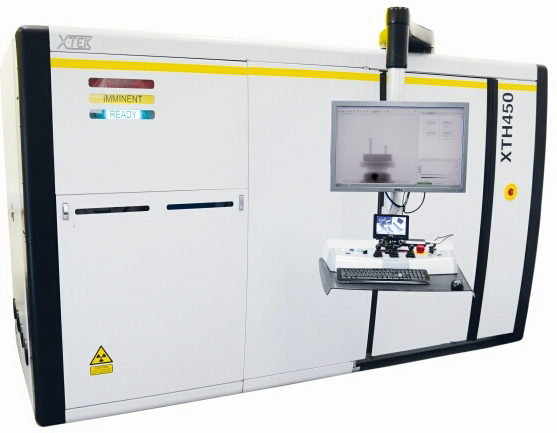

XT H 450 Industrial CT Scanner

Micro-focus X-Ray and CT system for turbine blade and casting inspection

The XT H 450 system offers the necessary source power to penetrate through high density parts and generate a scatter-free CT volume with micron accuracy. The system is available with a flat panel or a proprietary Curved Linear Array (CLA) detector that optimizes the collection of the X-rays without capturing the undesired scattered X-rays.

This linear detector realizes stunning image sharpness and contrast by avoiding image pollution and associated contrast reduction. 450kV and the CLA are ideal for the inspection of small to medium metal alloy turbine blades and casted parts.

Applications:

Automotive

• Electrical connectors
• Injection nozzles
• Sensors (e.g. Lambda sensor)
• LED light pipes
• Small high-pressure die casting parts
• DPF (Diesel Particulate Filter)

Aerospace

• Wax turbine blades
• Cast turbine blades
• Crack analysis in components
• Weld analysis

Plastic injection molding

• Complex plastic components (e.g. fan)
• Soft, translucent materials where tactile or optical is no option
• Ultrasonic welding of plastic parts

Pharmaceutical/medical

• Medicine dispensers
• Small instruments
• Small plastic or composite parts
• Bone structures

Research

• Material verification and analysis (e.g. structure, porosity, defects)
• Paleontology (e.g. bones, skulls, fossils)
• Geology and soil science
• Archeology
