Slant Bed Turning Centers

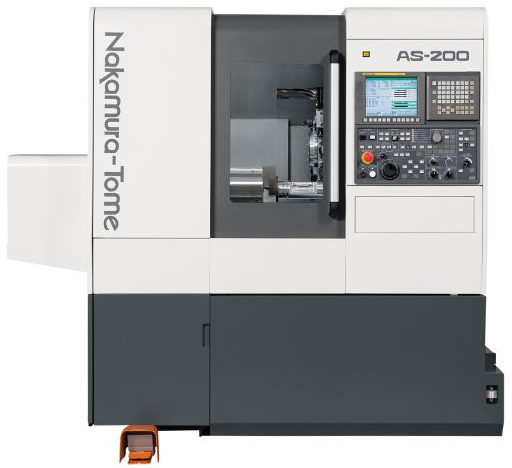

AS200
| Models | φ65mm | φ71m |
| Max. Turning Diameter | 225mm | 225mm |
| Max. Turning Length | 565mm | 565mm |
| Distance Between Spindles | max.850mm / min.200mm | max.850mm / min.200mm |
| Bar Capacity | 51mm | 65mm(Only L) |
| Chuck Size | 6″ | 6″ |
| L/R Spindle Speed | 5,000min-1 | 4,500min-1 |
| L Spindle Drive Motor | 15/11ｋW | 15/11ｋW |
| R Spindle Drive Motor | 11/7.5kW | 11/7.5kW |
- Both Y-axes are standard
- Up to 48 tools
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times
- Y1-Axis ±45mm, Y2-Axis ±35mm
