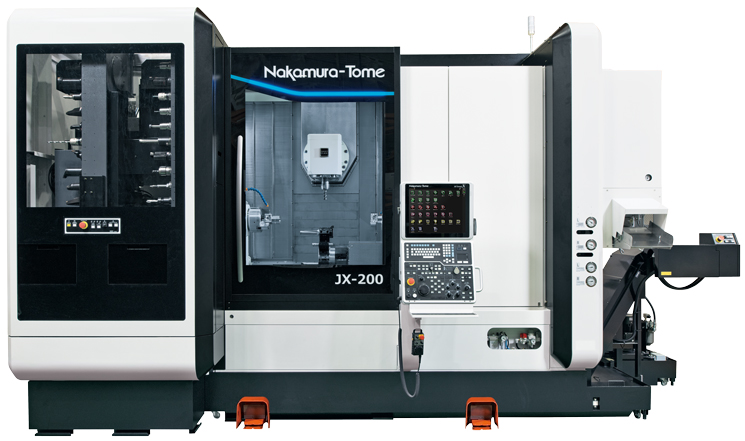

JX200
| Φ51mm(R only) | Φ65mm(op. R) | Φ80mm(op.) | |
|---|---|---|---|
| Max. turning diameter | 325mm / 255mm | ||
| Max. turning length | 1,058mm | ||
| Distance between spindles | max.1,250mm / min.240mm | ||
| Left Bar capacity(φ) | - | 65mm | 80mm(op.) |
| Right Bar capacity(φ) | 51mm | 65mm(op.) | - |
| Chuck size | 6”,8” | ||
| Spindle speed | 6,000min-1 | 4,500min-1 | 3,500min-1 |
| Left Spindle motor | - | 15/11kW | 18.5/15kW |
| Right Spindle motor | 11/7.5kW | 15/11kW | - |
*Specification of Φ51mm bar capacity is not available on Right side spindle when Φ80mm bar capacity is selected on Left side spindle.
- Equipped the World’s Shortest Tool-Spindle “NT Smart Cube”
- Distance between spindles 1,250mm
- Thanks to a heavy-ducy column structure, the stability is increased.
- Number of tools for ATC magazine 80 pcs (op. 40, 120)
- Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles.
- Milling and Y-axis are standard for the lower turret.
Stable and High Rigidity
- Thanks to the compact tool spindle “NT Smart Cube”, a wider machining area is ensured.
- By using the lower turret, it is applicable to simultaneous machining with upper/lower tools on L/R spindles as well as machining along with a turret center support.
