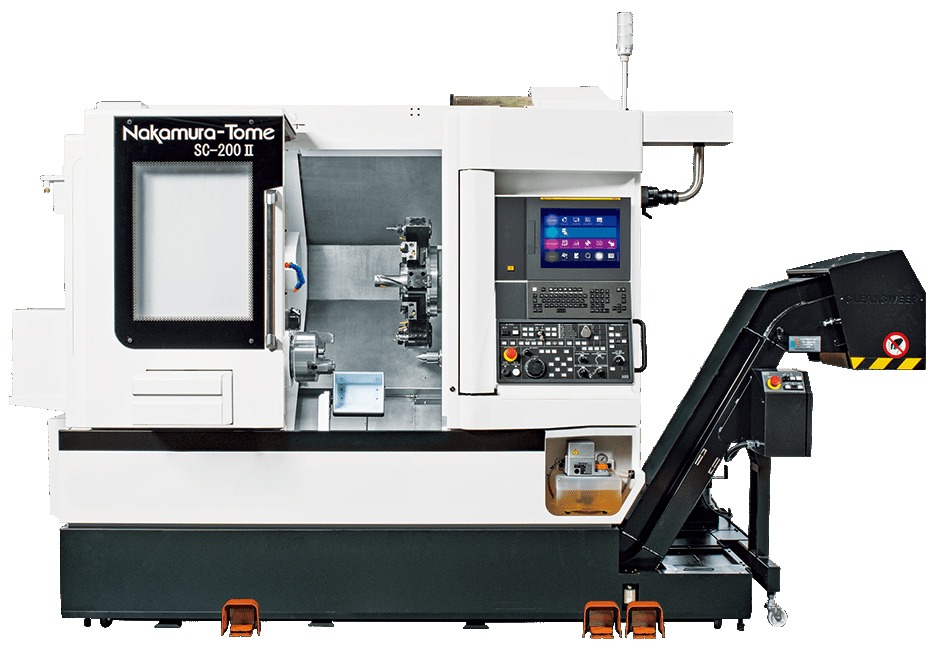

SC200 II
| Φ65mm | φ71mm(op.) | |
|---|---|---|
| Max. turning diameter 12st | 390mm | |
| Max. turning diameter 16st(op.) | 340mm* | |
| Max. turning length | 317.8mm | |
| Distance between spindles | max.510mm/min.205mm | |
| Bar capacity | φ65mm | φ71mm |
| Chuck size | 8″ | 10″ |
| L Spindle speed | 4,500min-1 | 4,500min-1 |
| L Spindle motor | 15/11kW, 18.5/15kW(op.) | |
8” Class Single-Turret Carrying Out Great Machining Rigidity and Stability
- It ensures the machining area that is more than an 8” class machine with a maximum turning diameter of 390mm and a tool swinging diameter of 620mm, equipped with a 15/11kW (op. 18.5/15kW) spindle motor. Spindle speed is 4,500min-1, and Y-axis slide travel is 100mm (±50mm).
- It also has a 5.5/3.7kW milling motor, and its spindle speed is 6,000min-1.
- With a high rigid slant bed with box-way slides, it carries out great machining rigidity and stability.sc-200II
More Convenient, More Effective
- The tailstock drive is selectable (op.).
- The gantry loader “GR-203 High-Speed” is selectable. (op.)
- Many stress-free machine structures have been applied that cut the burden on workers.
