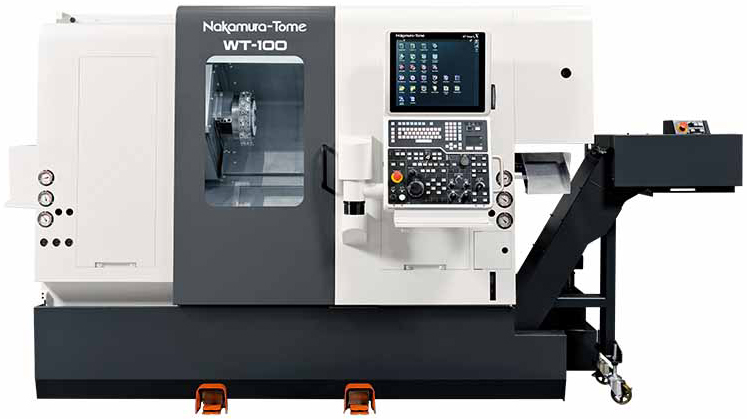

WT100

Multi Tasking Turning Center

WT100

  φ42mm
Max. Turning Diameter 190mm
Max. Turning Length 503mm
Distance Between Spindles max.735mm/min.210mm
Bar Capacity 42mm
Chuck Size 6″
L/R Spindle Speed 6,000min-1
L Spindle Drive Motor 11/7.5kW
R Spindle Drive Motor 11/7.5kW

- 11/7.5 kW spindle motor x 2. * Up to 22 kW turning power for shafts clamped between both spindles.
- 7.1/2.2kW milling motor x 2, High-Performance machining with small tools.
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
- Up to 48 tools. Multi-tool holders and mid-position indexing of turrets greatly increase the number of tools.
