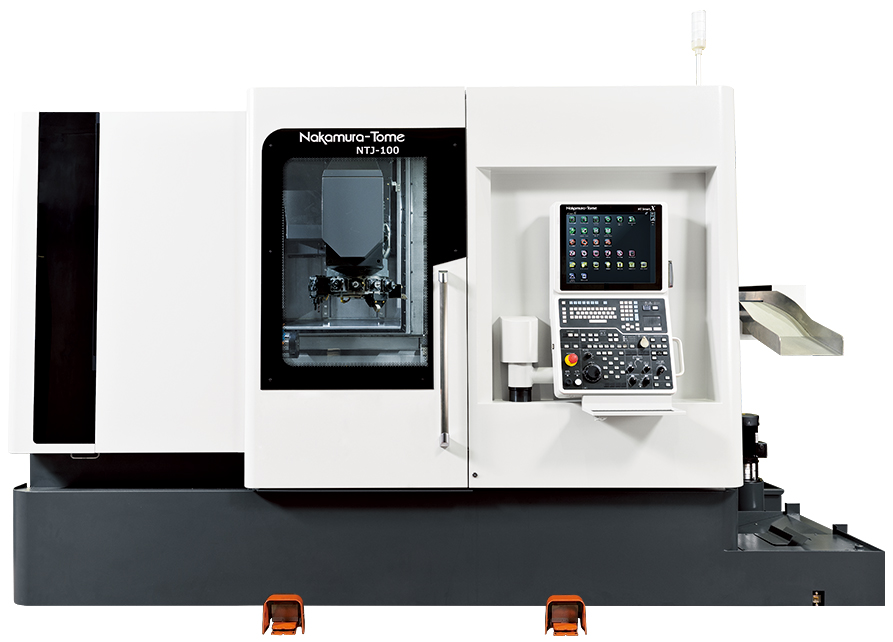

NTJ100

Multi Tasking Turning Center

NTJ100

Models φ51mm φ65mm (op.)
Max. Turning Diameter 175mm 175mm
Max. Turning Length 678mm 678mm
Distance Between Spindles max 910mm/min 200mm
Bar Capacity 51mm 65mm
Chuck Size 6″ 6″
Spindle Speed 5,000min-1 4,500min-1
Spindle Drive Motor 11/7.5kW 11/7.5kW

- Arbitrary Contour-Milling performed with Standard Driven-Tool Holders
- Upper turret with a B-axis, having a swiveling range of 182°.
- Up to 48 tool stations! Reduce setup time with permanent tooling.
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.

Both upper and lower turrets have milling and Y-axes.

- Upper Y-axis travel is 80 mm. Lower Y-axis travel is 65 mm.
- Milling motors have 7.1/2.2kW power and 6,000min-1 max. speed.
