Multi Tasking Turning Center

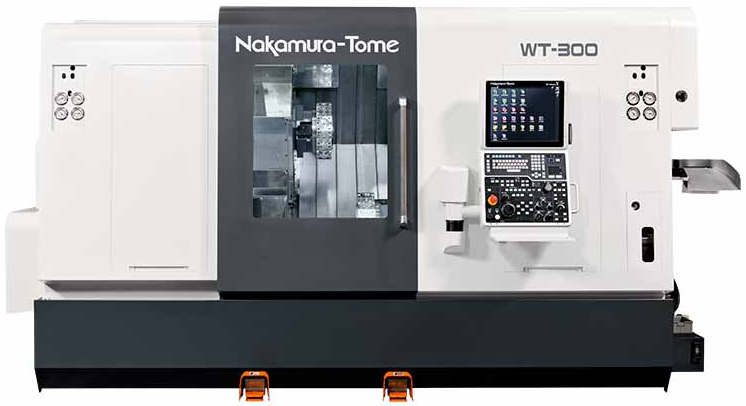

WT300
| φ65mm | φ71mm | φ80mm(op.) | φ102mm(op.) | |
|---|---|---|---|---|
| Max. Turning Diameter (Upper) | 270mm | 199mm | ||
| Max. Turning Diameter (Lower) | 270mm | 270mm(L:φ102/R:Φ65) 229mm(L:φ102/R:Φ102) |
||
| Max. Turning Length | 780mm | |||
| Distance Between Spindles | max.1,100mm / min.250mm | |||
| L Bar Capacity | φ65mm | φ71mm | φ80mm | φ102mm |
| R Bar Capacity | φ65mm | - | - | φ102mm |
| Chuck Size | 8″ | 12″ | ||
| L Spindle Speed | 4,500min-1 | 4,000min-1 | 3,500min-1 | 2,500min-1 |
| L Spindle Drive Motor | 15/11kW, 18.5/15kW(op.), 22/18.5kW(op.) | |||
| R Spindle Speed | 4,500min-1 | - | - | 2,500min-1 |
| R Spindle Drive Motor | 15/11kW, 18.5/15kW(op.) | - | - | 15/11kW, 18.5/15kW(op.) |
- NT smartX.
- Left / Right spindle motor power 15/11kW.
- Up to 30kW cutting power available for turning shaft-work with synchronized spindles.
- Milling Tool Motor Power 5.5/3.7kW, High-Performance machining with small tools.
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
- Up to 48 tools. Multi-tool holders and mid-position indexing of turrets greatly increase the number of tools.
