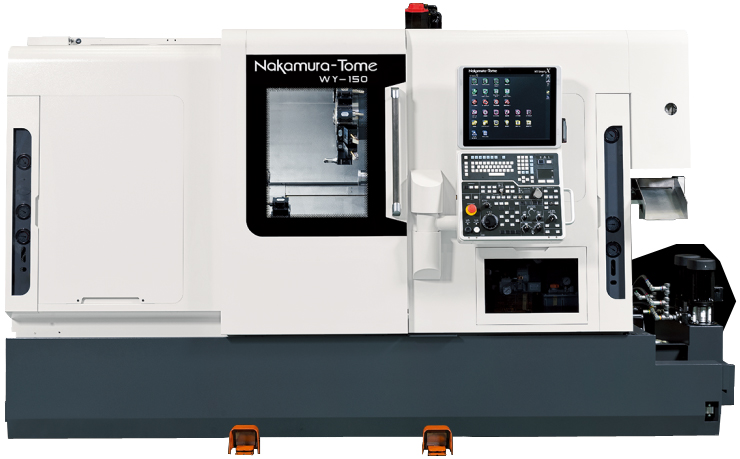

Multi Tasking Turning Center
WY150
| φ51mm | φ65mm(op.) | |
|---|---|---|
| Max. Turning Diameter | 225mm | |
| Max. Turning Length | 565mm | |
| Distance Between Spindles | max.850mm / min.200mm | |
| Bar Capacity | 51mm | 65mm(Only L) |
| Chuck Size | 6″ | |
| L/R Spindle Speed | 5,000min-1 | 4,500min-1 |
| L Spindle Drive Motor | 15/11ｋW | |
| R Spindle Drive Motor | 11/7.5kW | |
- Both Y-axes are standard.
- Up to 48 tools.
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
High rigidity turrets equipped with Y-axes. Y1-Axis ±45mm, Y2-Axis ±35mm
