Sanco

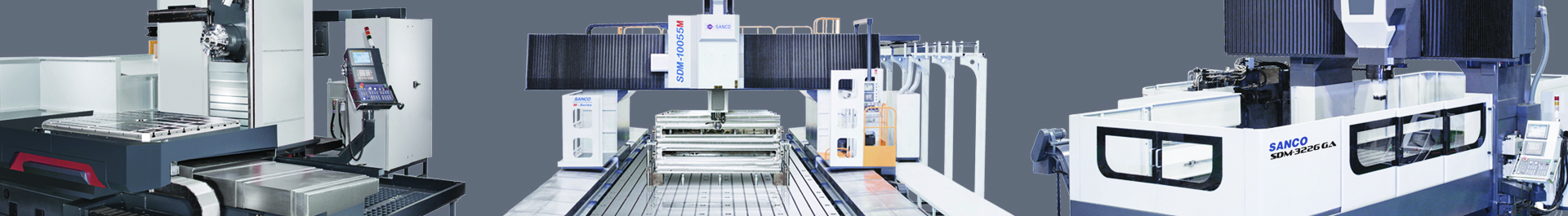

CNC Bridge Type

SDM3220

Sanco manufacture a full range of ruggedly constructed SDM series double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.

Spindle & Head Options

  • Spindle speed options: 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm -
  • dependant on spindle drive & taper configuration
  • Spindle drive options: Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
  • Spindle taper options: BT50 (std) BT40 or HSK63A (opt)

Optional

  • Automatic tool changer options (ATC)
  • Milling heads (several styles available)
  • Long nose spindle
  • 4th Axis rotary table
  • Thermal distortion compensation module
  • Linear scale feedback
  • Coolant through spindle (CTS)
  • Work and tool measuring
  • Control options: Fanuc/Siemens/Heidenhain

Specifications

Specifications

Table Size  3000*1700mm
T Slots 22mm
Maximum Loading  10 000kg
X Axis travel 3200mm
Y Axis 1800mm(2400)
Z Axis 750mm(900, 1200)

Distance

Distance between two columns 2000mm
Spindle Speed   4000(6000, 8000, BT-50)
(8000, 10000, 12000, 15000,
BT-40)
(12000, 15000 BBT-40)
(15000, 20000, HSK-63A)
Cutting Feedrate X/Y/Z 1-5000mm/min
Rapid Feedrate X / Y / Z 12m/min(15) / 12(15) / 10(12)
No. of ATC tools 20, 24, 32, 40, 60
Max. Tool (Dia / Length) Dia ¢110 OR ¢220 No Adjacent Tool / Length 350
Max. tool Weight 18kg (BT-50)

SDM5225

Sanco manufacture a full range of ruggedly constructed SDM series double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.

Spindle & Head Options

  • Spindle speed options: 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm -
  • dependant on spindle drive & taper configuration
  • Spindle drive options: Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
  • Spindle taper options: BT50 (std) BT40 or HSK63A (opt)

Optional

  • Automatic tool changer options (ATC)
  • Milling heads (several styles available)
  • Long nose spindle
  • 4th Axis rotary table
  • Thermal distortion compensation module
  • Linear scale feedback
  • Coolant through spindle (CTS)
  • Work and tool measuring
  • Control options: Fanuc/Siemens/Heidenhain

Specifications

Specifications

Table size 5000*2000mm
T Slots 22mm
Maximum Loading 12 000kg
X Axis travel 5200mm
Y Axis travel 2400mm(3000)
Z Axis 750mm(900, 1200)
Distance between two columns 2500mm
Spindle speed  4000rpm(6000, 8000, BT-50) (8000, 10000, 12000, 15000,
BT-40) (12000, 15000 BBT-40) (15000, 20000, HSK-63A)
Cutting Feedrate X/Y/Z 1-5000mm/min
Rapid Feedrate X/Y/Z 10/12/10m/min(12)
Minmum Setting 0.001mm
No.of ATC tools 20, 24, 32, 40, 60
Max. tool Weight 18kg


SDM7232

Sanco manufacture a full range of ruggedly constructed SDM series double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.

Spindle & Head Options

  • Spindle speed options: 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm -
  • dependant on spindle drive & taper configuration
  • Spindle drive options: Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
  • Spindle taper options: BT50 (std) BT40 or HSK63A (opt)

Optional

  • Automatic tool changer options (ATC)
  • Milling heads (several styles available)
  • Long nose spindle
  • 4th Axis rotary table
  • Thermal distortion compensation module
  • Linear scale feedback
  • Coolant through spindle (CTS)
  • Work and tool measuring
  • Control options: Fanuc/Siemens/Heidenhain

Specifications

Specifications

Table Size 6000*2900mm
T Slots 22mm
Maximum Loading  20 000kg
X Axis travel 7200mm
Y Axis travel 3700mm
Z Axis 750mm(900, 1200)
Distance between two columns 3200mm
Speed 4000rpm(6000, 8000, BT-50)
(8000, 10000, 12000, 15000, BT-40)
(12000, 15000 BBT-40) (15000, 20000, HSK-63A)
Cutting federate X/Y/Z 1-5000mm/min
Rapid Feedrate X/Y/Z 10m/min(12) / 10(12) / 10(12)
Minmum Setting 0.001mm
No.of ATC tools 20, 24, 32, 40, 60
Max. tool weight  18kg (8, BT-40)

SDM7235W

Sanco manufacture a full range of ruggedly constructed SDM series double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.

Spindle & Head Options

  • Spindle speed options: 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm -
  • dependant on spindle drive & taper configuration
  • Spindle drive options: Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
  • Spindle taper options: BT50 (std) BT40 or HSK63A (opt)

Optional

  • Automatic tool changer options (ATC)
  • Milling heads (several styles available)
  • Long nose spindle
  • 4th Axis rotary table
  • Thermal distortion compensation module
  • Linear scale feedback
  • Coolant through spindle (CTS)
  • Work and tool measuring
  • Control options: Fanuc/Siemens/Heidenhain

Specifications

Specifications

Table size 6000*3000mm
T Slots  22*200mm
Maximun Load 24000kg
X Axis travel  7200mm
Y Axis 4400mm
Z Axis 750mm
W Axis 1100mm(1600)
Distance between two columns 3500mm
Spindle speed 4000rpm(6000)
Rapid feedrate X/Y/Z/W  10/10/10/6m/min
Minimum Setting 0.001m/min
Cutting Feedrate 1-5000mm/min
Spindle Motor  22kw(26)
Four-Axes Servo Motors (X/Y/Z/W) 9/9/4/7x2kw
No. of Tools 32 (40, 60)
Tool Change Time 5.5sec
Max. Tool Length 350mm
Max. Tool Weight 20kg

SVW3222

Standard Featutes & Accessories

  • Spindle speed 6000rpm
  • Spindle motor α15i ( 15/18.5kW )
  • Spindle air blast system
  • Programmable coolant system
  • Automatic lubrication system
  • M.P.G.
  • Heat exchanger in cabinet
  • Automatic power off
  • Working lamp & alarm lamp
  • Screw auger & chain type chip conveyors & cart
  • Machine & controller manuals
  • Levelling bolts & pads
  • Tools box for machine adjustment
  • RS-232C / RJ-45 terminal interface
  • AICC Ⅱ( 200Block / 30m )
  • A.T.C. 24
  • Splash guard

Specifications

Specifications

Table size 3000x1800mm
Max. load 12 000kg
X Axis travel  3200mm
Y Axis 2100mm
Z Axis 800mm(1000)
Spindle speed  6000rpm(4000)
Between Two Columns 2200mm
No. of ATC tools 24 (32/40/60)
Rapid feedrate X/Y/Z 12/15/15
Cutting federate  7000mm/min

SDM16040MA

Sanco manufacture a full range of ruggedly constructed SDM series double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.

Spindle & Head Options

  • Spindle speed options: 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm -
  • dependant on spindle drive & taper configuration
  • Spindle drive options: Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
  • Spindle taper options: BT50 (std) BT40 or HSK63A (opt)

Optional

  • Automatic tool changer options (ATC)
  • Milling heads (several styles available)
  • Long nose spindle
  • 4th Axis rotary table
  • Thermal distortion compensation module
  • Linear scale feedback
  • Coolant through spindle (CTS)
  • Work and tool measuring
  • Control options: Fanuc/Siemens/Heidenhain

Specifications

Specifications

Table size  16000mmx3150mm(16000x4150mmOPT)
Table Length 16000mm
Table Width 3200mm(4150mm OPT)
T-slots 28x10x250
Maximum weight 27 000kg
X/Y/Z Axis travels  16200x4500x1400
Vertical spindle nose to table 100-1500mm STD (400-1800, 700-2100 Options)
Vertical Spindle Center to column 485mm
Horizontal Head spindle center to table 165-1415mm
Nose to Vertical Spindle 1500mm
Distance Between Columns 4000mm

Head 1

Horizontal Spindle speed 3500rpm
Horizontal Head Min Indexing  5 degrees
Horizontal head position accuracy 0.02/300mm
Coolant Through Spindle YES

Head 2

Horizontal Spindle speed  3500rpm
Horizontal Head Min Indexing 90 degrees
Horizontal head position accuracy 0.02/300mm
Coolant Through Spindle YES

Head 3

Horizontal Spindle speed 3500rpm
Horizontal head position accuracy 0.02/300mm
Coolant Through Spindle YES

Head 4

Vertical Spindle Speed 4200rpm
Vertical (with 60 position Auto Tool Changer) 4000rpm
90º Horiz (with 60 position Auto Tool Changer) 3500rpm



No of tools 60 tools
Max tool weight  20kg
Auto Tool change Tool to tool time Vert: 18sec / Horizontal: 13sec
Rapid federate X/Y/Z 10/10/10m/min
Cutting  0.001
X axis accuracy 8200-0.06/10200-0.07/12200-0.08
Y axis accuracy 0.04
Z axis accuracy 0.02

Horizontal Boring Mills

SHM-11020RF (110mm Quill)

The extendable quill on the SHM series allows cutting at the centre of the table. The heavy duty direct drive rotary table offers exceptional stability, that can handle loads of up to 7,000kg and can index to 0.001 degree increments. It has a heavy duty locking mechanism that automatically engages at 90 degree increments.

Standard
• Extendable Spindle (Quill or W-axis)
• German precision spindle (110mm diameter)

Features
• Movable column design(except SHM-11020RF)
• Fixed column design(SHM-11020RF)
• Milling style (no rotary table, large milling table) - SHM-11020/11030/11040
• 90 degree precision rotary table locking pin(SHM-11025R / 11030R / 11040R)

Specifications

Specifications

Overall Size 1000*1200mm
T Slots 22*9mm
Height from Ground 1240mm
Maximum Loading 4000kg
B Axis Mini. Increment ° 0.001° Automatic 4 positions (90°)
X Axis Travel 2000mm
Y Axis Travel  1600mm
Z Axis Travel 1200mm(1400)
W Axis Travel  400mm
Diameter Ø110mm
Speed 219268rpm
Rapid Feedrate X/Y/Z 10000mm/min
Rapid Feedrate W 5000mm/min
Minimum Setting 0.001mm/min
Cutting Feedrate 5000mm/min
No.of ATC 40(60)
Tool Change (Tool to Tool) 15sec
Diameter of Max. Tool  Ø125/Ø250mm
Max. Tool Length 400mm
Max. Tool Weight 25kg

SHM-13040R (130mm Quill)

The extendable quill on the SHM series allows cutting at the centre of the table. The heavy duty direct drive rotary table offers exceptional stability, that can handle loads of up to 7,000kg and can index to 0.001 degree increments. It has a heavy duty locking mechanism that automatically engages at 90 degree increments.

Standard
• Extendable Spindle (Quill or W-axis)
• German precision spindle (110mm diameter)

Features
• Movable column design(except SHM-11020RF)
• Fixed column design(SHM-11020RF)
• Milling style (no rotary table, large milling table) - SHM-11020/11030/11040
• 90 degree precision rotary table locking pin(SHM-11025R / 11030R / 11040R)

Specifications

Specifications

Overall Size 2000*1800mm
T Slots mm  28*9mm
Maximum Loading 15000kg(20000)
B Axis Mini. Increment ° 0.001° Automatic 4 positions (90°)
X Axis Travel  3000mm
Y Axis Travel  2500mm(3000)
Z Axis Travel  1700mm
W Axis Travel (Spindle Axis) 700mm(900)
W Axis Diameter  Ø130mm
X / Y / Z Rapid Feed rate 10mm/min
X / Y / Z Minimum Setting 0.001mm/min
X / Y / Z Cutting Feed rate 5mm/min
W Axis Rapid Feedrate mm/min  2mm/min
No. of ATC 40(60/90/120)
Tool Change Time  15sec
Max. Tool Length 400mm
Max. Tool Weight    25kg

SHM-630L

HIgh Performance, Extremely Rigid , Low cost Horizontal Machine without Extendable Quill

Standard
• Highly Rigid Spindle Ram
• German precision spindle (110mm diameter)

Features

• X-axis complete with 2 linear guide ways

• Z-axis complete with 3 linear guide ways ​

• Y-axis - Box Way system

• Rotary Table as standard
• Hydraulic Counter balance

Specifications

Specifications

Overall Table Size  630x630mm
Max.Loading  1500kg
B-Axis min.Increment
X Axis travel 1400mm(1200)
Y Axis travel   1150mm(950)
Z Axis 1000mm(800)
Speed 4000/6000rpm
No.of ATC  40(60)
